Parameter

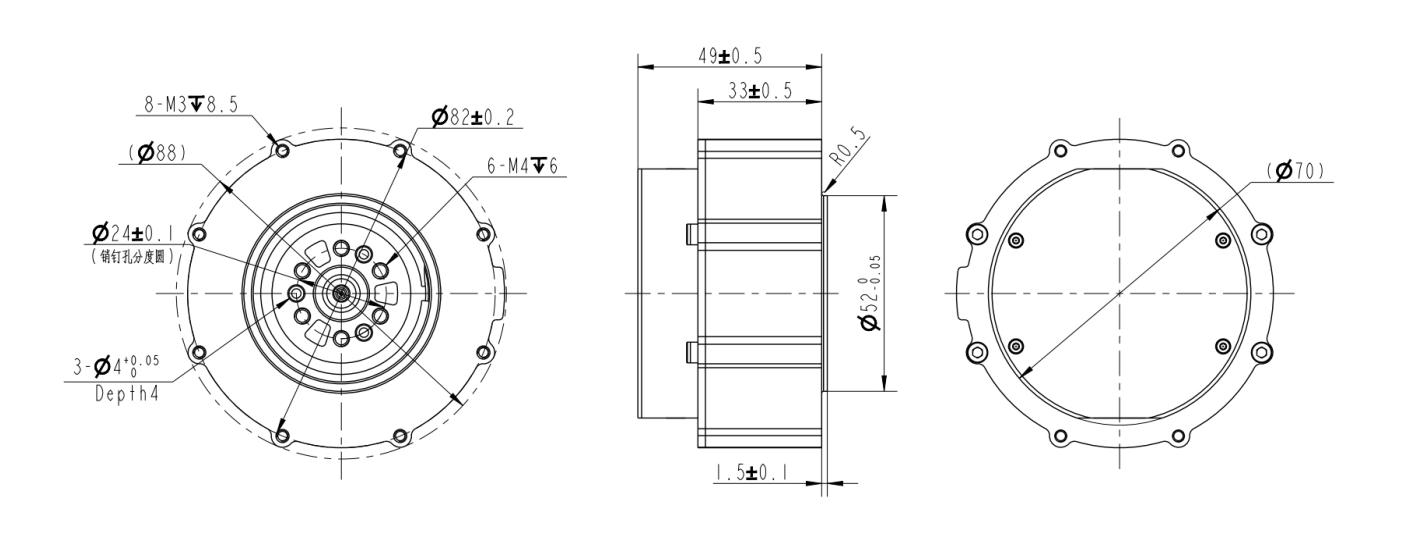

Overall Dimensions
Download
Cooperation電氣特性（Electrical Specs）
| 科目 Item | 參數 Spec |
| 磁編碼器 Magnetic Encoder | 2 pcs |
| 額定電壓 Rated Voltage | 48V |
| 使用電壓范圍 Voltage Range | 15-60V |
| 額定輸出功率 Rated Output Power | 115w ±10% |
| 額定扭矩 Rated Torque | 11N.m |
| 峰值扭矩 Peak Torque | 36N.m |
| 運轉方向 Running Direction | CW/CCW |
| 使用溫度范圍 Temperature Range | -20~50℃ |
| 使用濕度范圍 Humidity Range | 5~85% |
| 保存溫度范圍 Storage Temperature Range | -30~70℃ |
| 絕緣等級 Insulation Level | Class B |
| 空載轉速 No-load Speed | 480 rpm ± 10% |
| 空載電流 No-load Current | 0.98 Arms |
| 額定負載轉速 Rated Load Speed | 100 rpm ± 10% |
| 額定負載相電流 Rated Load Phase Current | 14.3Apk ± 10% |
| 峰值相電流 Peak Phase Current | 57Apk ± 10% |
| 絕緣電阻/定子繞組 Insulation Resistance/ Stator Winding | DC 500VAC，100M 0hms |
| 耐高壓/定子與機殼 High Voltage Resistance/ Stator and Casing | 600VAC, 1s, 2mA |
| 電機反電勢 Back-EMF | 7.4 Vrms/rpm ±10% |
| 轉矩常數 Torque Constant | 1.09 N.m/Arms |
機械參數（Mechanical Specs）
| 科目 Item | 參數 Spec |
| 重量 Weight | 621g ±3g |
| 極數 Pole | 28 |
| 相數 Phase | 3 |
| 驅動方式 Drive Method | FOC |
| 減速比 reduction ratio | 9:1 |
性能曲線（Performance Curves）

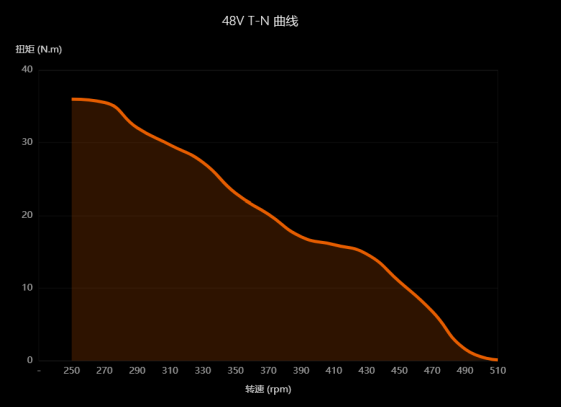

48V T-N曲線（T-N under 48V）

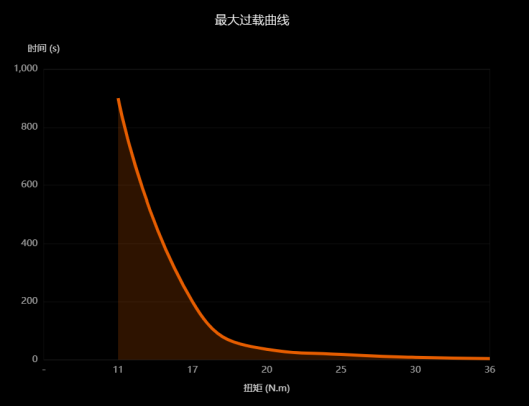

最大過載曲線（Max Overload）
| 負載 Load (N.m) | 工作時間 Operating Time (s) |
| 36 | 4 |
| 30 | 8 |
| 25 | 18 |
| 20 | 36 |
| 17 | 200 |
| 11 | rated |
