步距角精度Step Angle Accuracy

±7% (整步，空載full step, no load)

電阻公差Resistance Accuracy

±10%

電感公差I(lǐng)nductance Accuracy

±20%

溫升Temperature Rise

65K  Max. ambient temperature 40。C

65K 環(huán)境溫度40℃

環(huán)境溫度Ambient Temperature

-10。C~+50。C

絕緣電阻Insulation Resistance

100MΩMin. ,500VDC

絕緣等級Insulation Class

Class E

介電強度Dielectric Strength

650VAC for one second, leakage current 1mA

650VAC 一秒， 漏電電流1mA

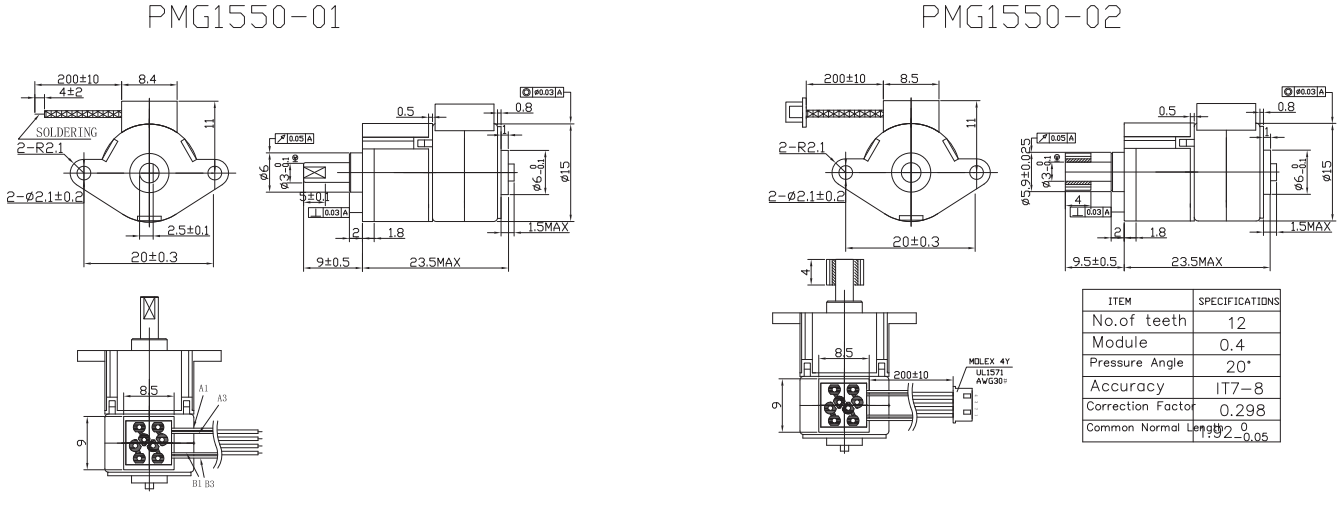

PMG1550-01

18/50

2

5

0.5

10

2.3

360 @200pps

1280

1350

1:50

12.2

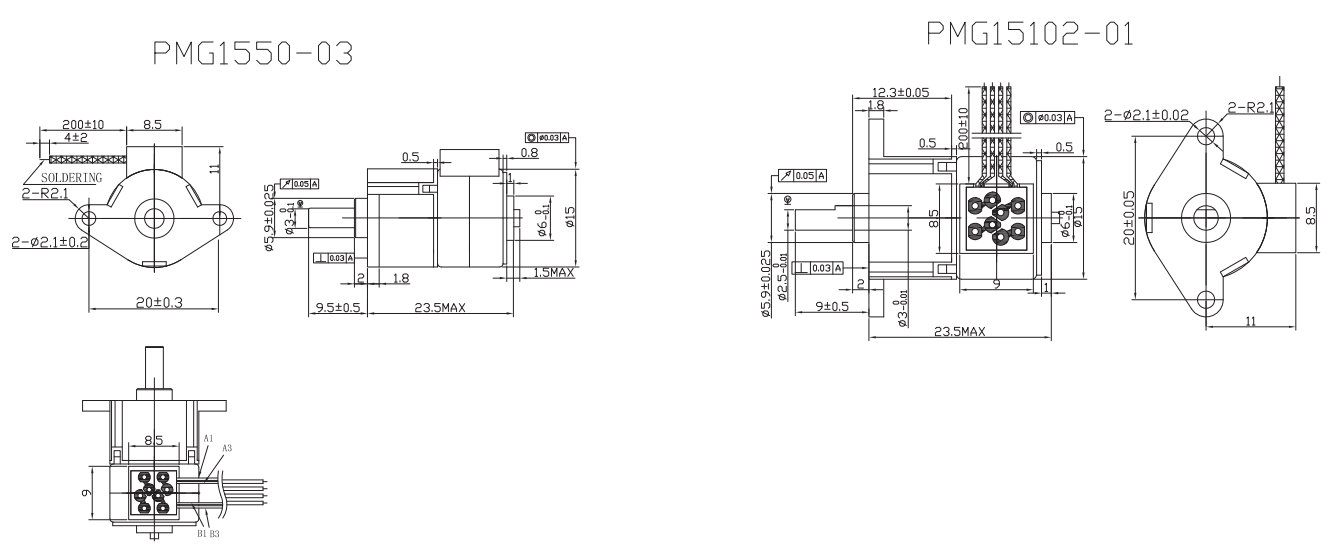

PMG1550-03

18/50

2

5

0.5

10

2.8

140

@200pps

1150

2000

1:50

13

PMG15102-01

18/102.5

2

5

0.5

10

2.3

350

@200pps

1000

2000

1:102.5

12.2
