電機軸徑Motor Shaft diameter

3mm,4mm,5mm,6mm,6.35mm,7mm

Suitable for shaft   diameter 3mm,4mm,5mm,6mm,6.35mm,7mm

存儲溫度Storage Temperature

-40℃～85℃

推薦工作環境

Environmental   conditions

場合

Application

無腐蝕性，易燃，易爆，導電性氣體，液體和粉塵No corrosive,   flammable, explosive, conductive gas, liquid and dust.

工作溫度Temperature

-25℃～80℃

濕度

Humidity

不高于85% RH

No more than 85% RH

電氣

參數Electrical Parameter

供電電壓Supply Voltage

5VDC±0.5V

     消耗電流Current   Consumption

≤60mA

差分信號輸出

Differential   Single Output

5V,GND,   A+/A-,B+/B-,Z+/Z-,

  輸出電平方式  Output Level mode

TTL電平(TTL Compatible)

索引信號寬度  Index Width

1/4T

差分輸出電壓

Differential   Output Voltage

高電平輸出電壓(VoH) ≥3.4V

High Level   Output (VoH) ≥3.4V

低電平輸出電壓(VoL) ≤0.5V

Low Level Output   (VoL) ≤0.5V

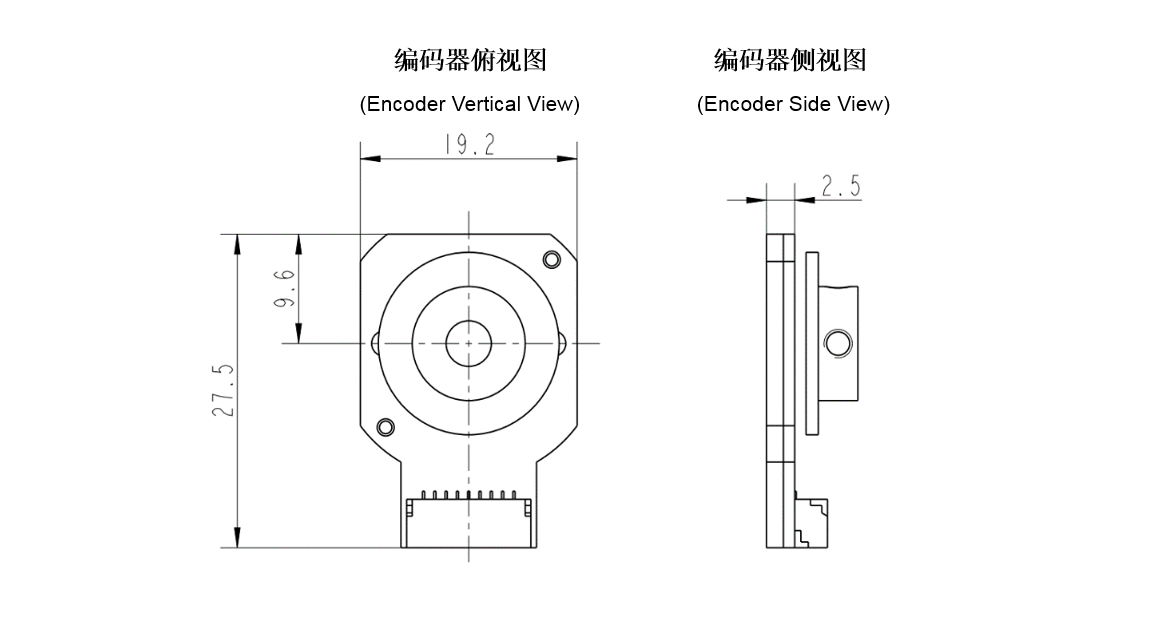

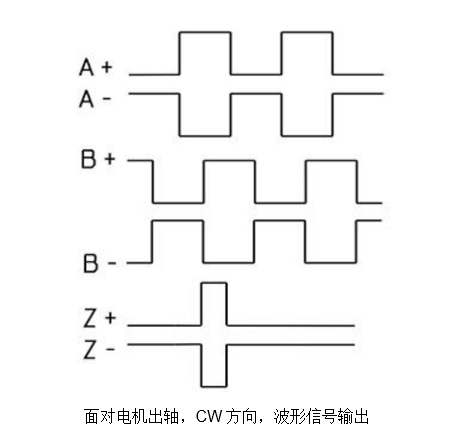

差分信號輸出格式

Differential   Signal Output Format

線驅動26C31

Line Drive 26C31

可選分辨率(單位Unit：線/CPR)

Optional   Resolution

500線/1000線/2000線

占空比 Duty Cycle

50% ±10%

相位差 Phase Difference

 90°±10°

響應頻率Frequency Response

≤220KHz        注意：信號頻率 = (轉速(Rpm)×線數)/60

Note: The signal   frequency = (Speed(Rpm)  *  number of Lines)/60
